Egg Grader Type S 121

Home » Manual Graders » Egg Grader Type S 121

s121-egg-graderOur egg graders are manufactured using very sophisticated materials and technologies. Accurate and detailed planning has allowed the engineering and the manufacture of highly reliable and updated equipment from a technological point of view. Furthermore these egg graders are very easy to operate and require very simple maintenance.

Capacity : 12000 eggs per hour

Feeding Lanes : 5

Weight classes : 7

Power supply : 400 V. Threephase, 50 Hz

Consumption : 0,75 Kw.

Weighing Scales

These are the “heart” of the egg graders. This is the reason they have been designed and manufactured with such care and precision. For special requirements the counter weight can be set to any weight category.

Belt Conveyor

This is an innovative solution which carries out the delicate operation of moving the eggs from the exit of the scales to the hand packing table.


The engineering and the manufacture of the modules for this egg graders allows for very easy maintenance besides offering the possibility of feeding the eggs either by hand or by in-line feeding conveyor. The limited dimensions of this egg grader permits it to fit into many situations according to individual needs.


  • Vacuum loader
  • Egg Printing Ovobit Egg Printer
  • Egg Counter
  • Maintenance Contract
  • Part Exchange

All of our egg graders are fitted as standard with a candling system using fluorescent lamp. (Candling booth by type S 121)

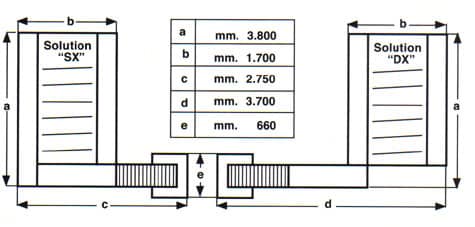

see diagram below



For further information please call us today on 01789 720027
