Riva Selegg Egg Grader Type S 151

The flagship of the range with High yield, minimal maintenance. Can be combined with the Automatic Loader (optional) for an ideal loading of eggs even if already arranged on a tray

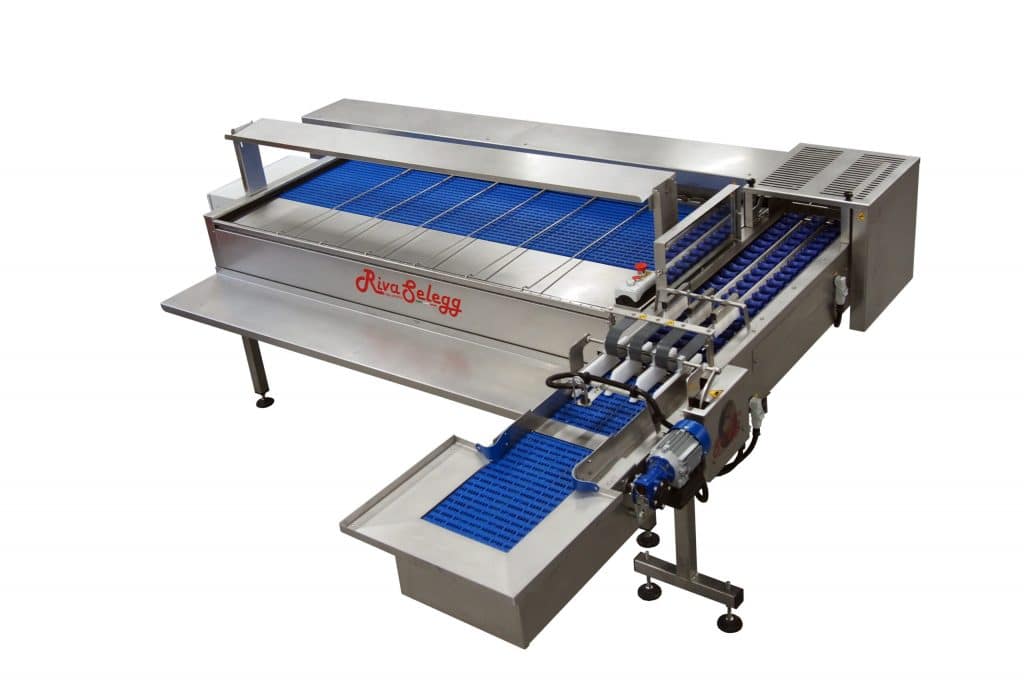

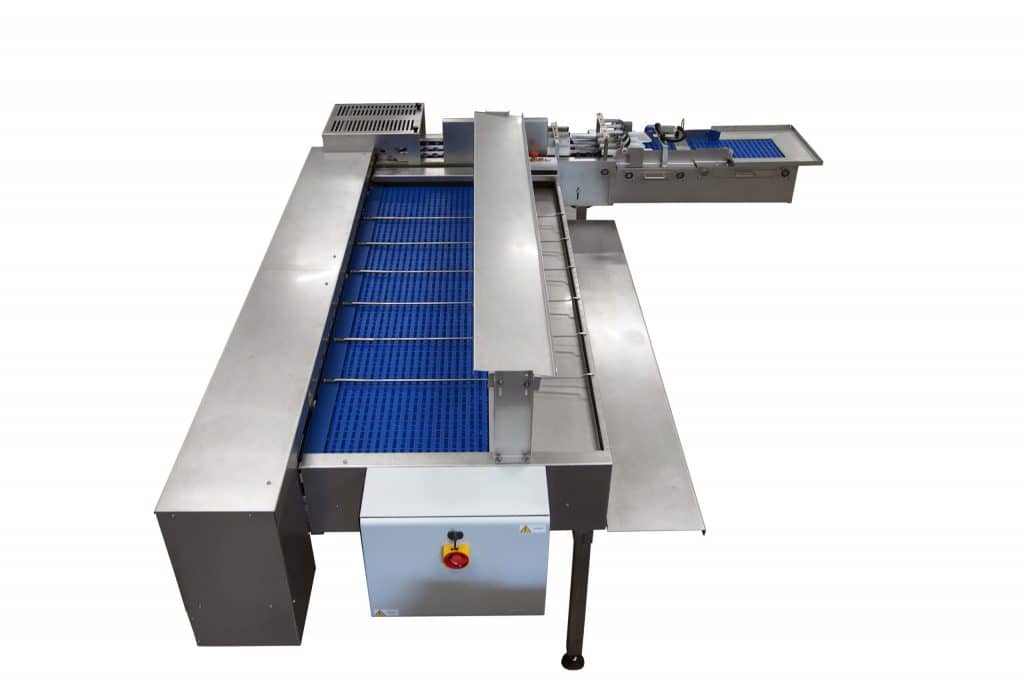

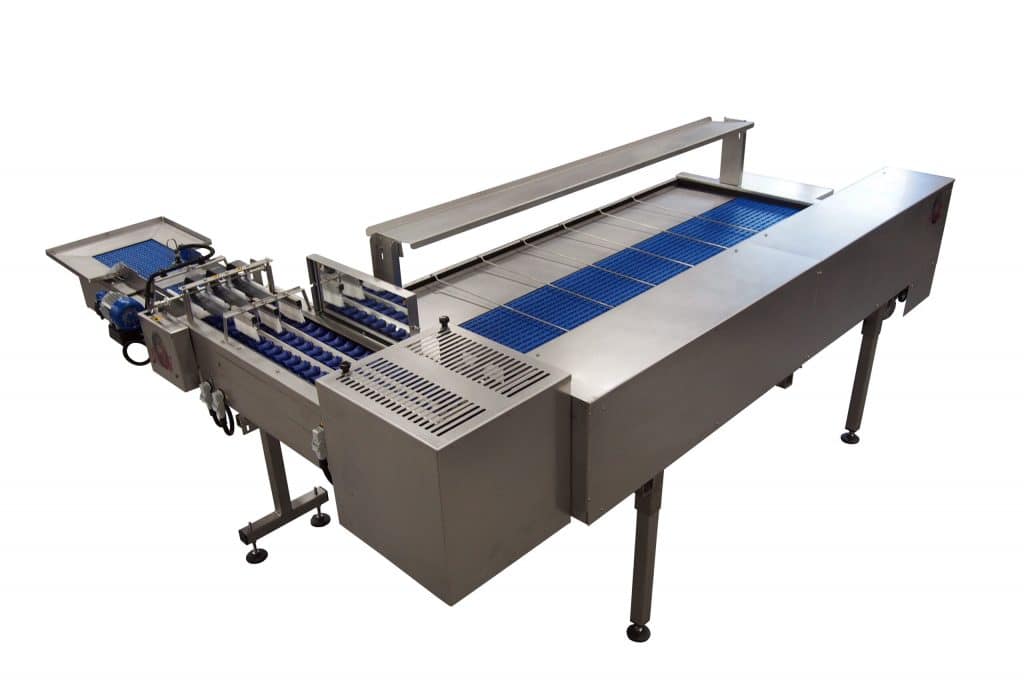

Entirely made of stainless steel Riva Selegg's semi-automatic grading machine up to 15,000 eggs per hour.

Simple to use with little maintenance whilst delivering high degrees of productivity in a safe smooth way.

Can be supplied with a mechanical stamping system for code and logo printing, or with an electronic printer that allows a high degree of customization. ie. adding 'Best Before' dates etc.

Riva_S151
Riva_S151_1

Features

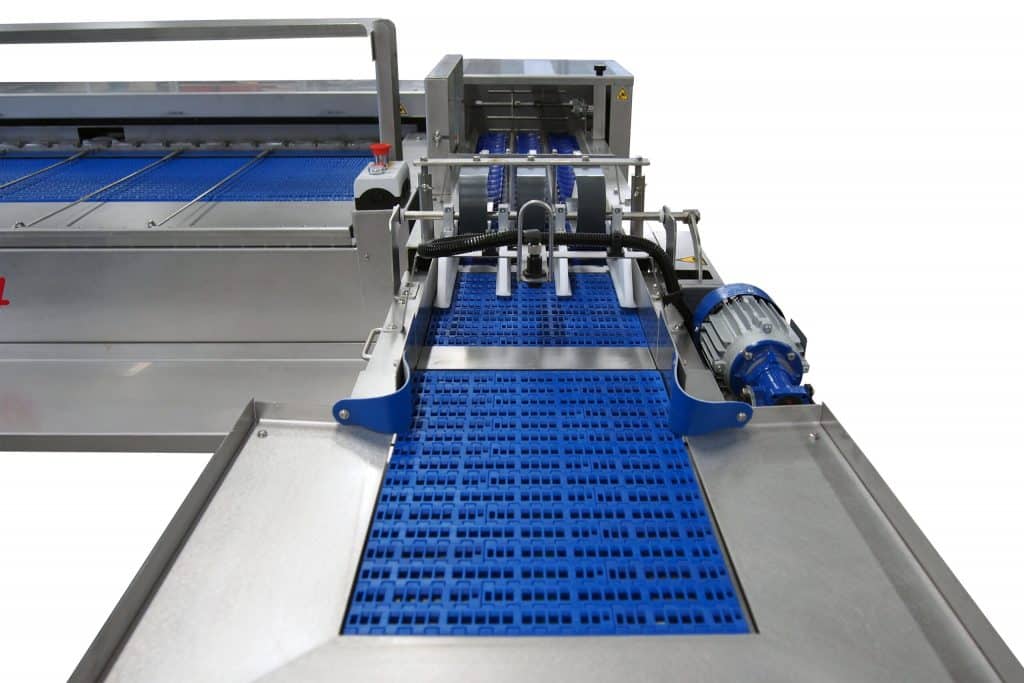

  • In-line feeding conveyor for direct supply  from production unit, complete with automatic egg pressure control.

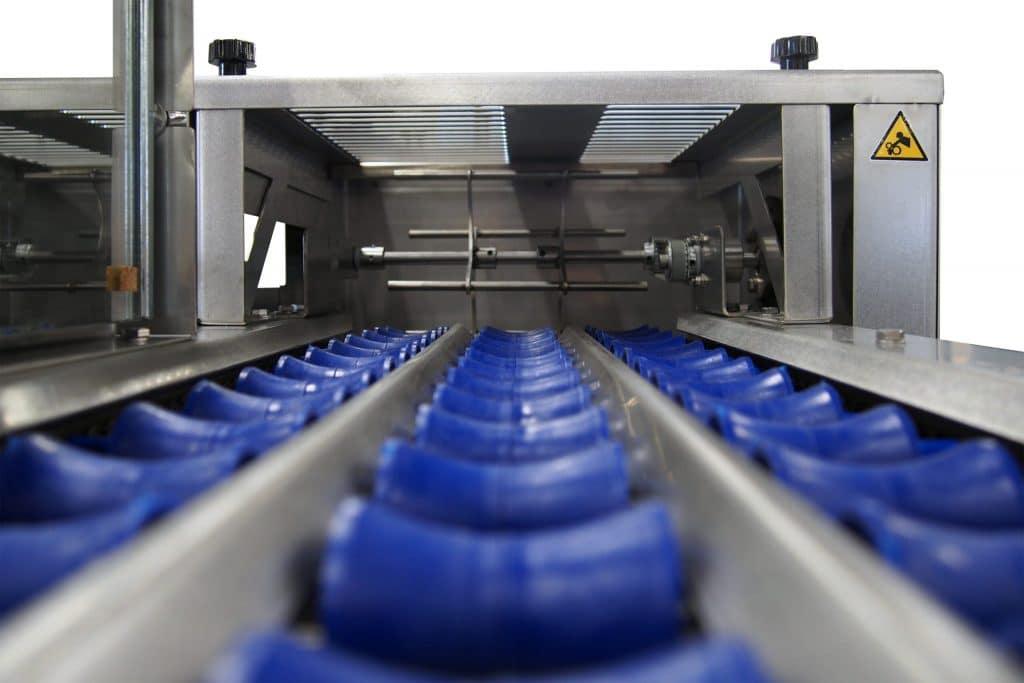

  • In-feeding with 6 rows of rubber rollers, candling booth with 6 fluorescent lamps, egg’s rotating motion to simplify candling.
  • Grades in 6 classes with 30 precise scales.
  • Synthetic belt to transport the eggs from the scales to the hand packing table.
  • Adjustable dividing lathes for all grades.
  • Trays keeping shelf.

ACCESSORIES

Also see our 'Egg Printers' and 'Egg loading' options to support your overall egg grading solution...

Ovobit3_EggPrint3
v42b-1_resized
RivaSelegg_AutoLoader_C8

Technical Specifications

Capacity 15,000 eggs/hour
Loading Manual, or automatic thanks to the loading tray with removable edges
Candling With LED lamps under the power roller conveyor
Weight categories up to 6, using 30 precision scales
Precision ± 1 gram

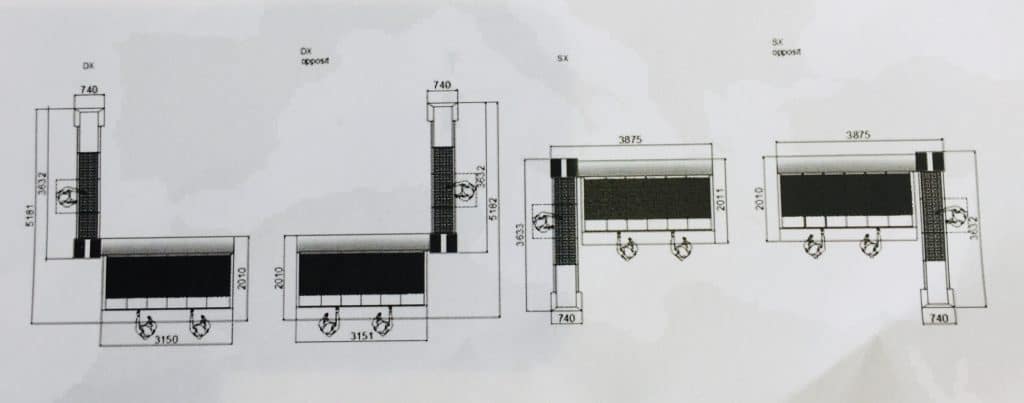

Dimensions mm (W x D x H) 5,181 x 3,150 x 960
Weight 1115 Kg
Power supply Single-phase, 230V, 1.90A

3phase, 400V, 0,68A
