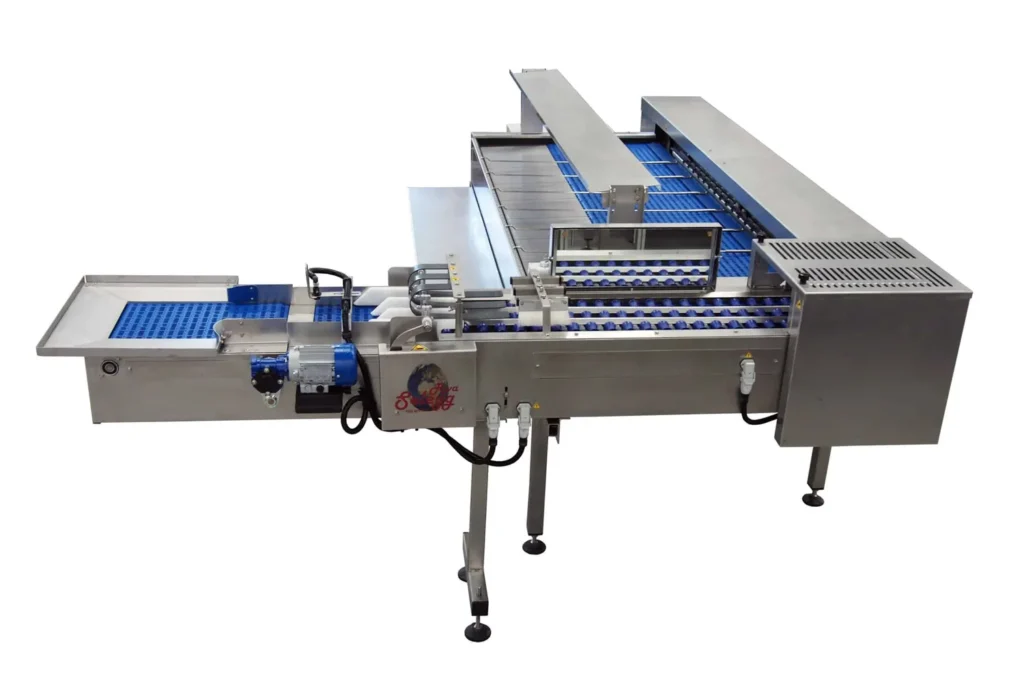

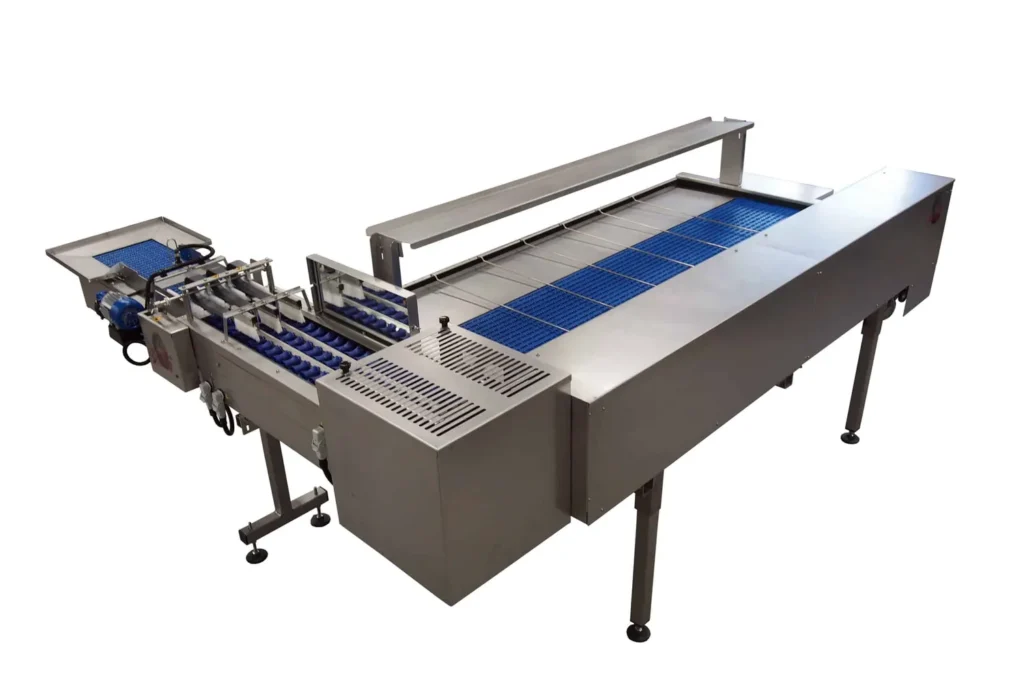

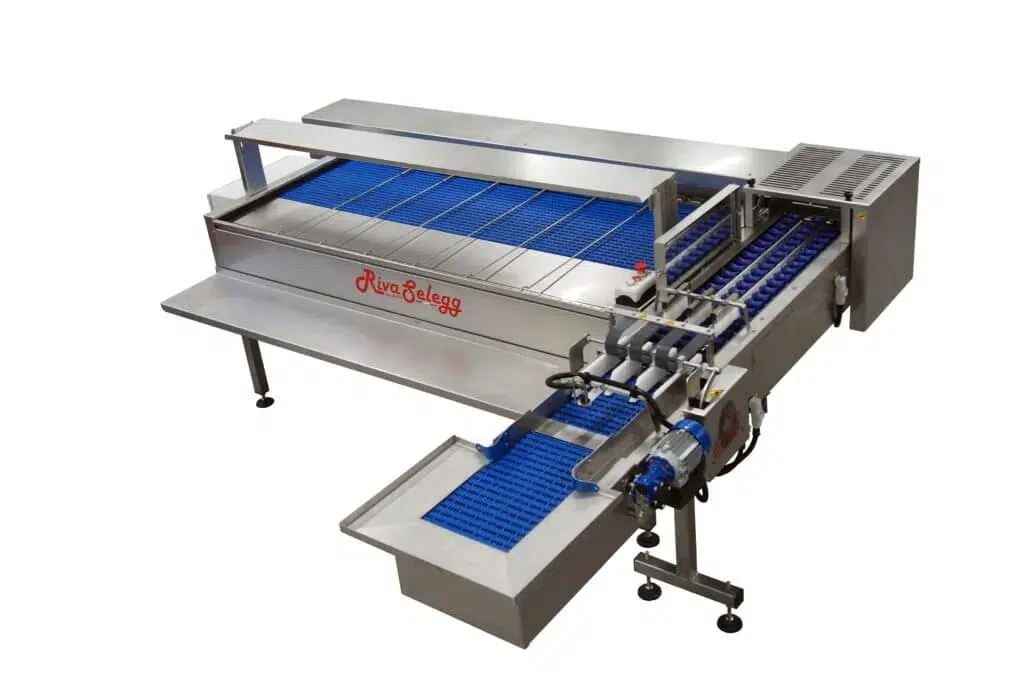

Riva Selegg Egg Grader Type S 91

Entirely made of stainless steel Riva Selegg's semi-automatic grading machine up to 9,000 eggs per hour.

Simple to use with little maintenance whilst delivering high degrees of productivity in a safe smooth way.

Can be supplied with a mechanical stamping system for code and logo printing, or with an electronic printer that allows a high degree of customization. ie. adding 'Best Before' dates etc.

Egg Grader Type S 91

Weighing Scales

The “heart” of the egg graders and a key reason for the design and manufacture with such care and precision. For special requirements the counter weight can be set to any weight category.

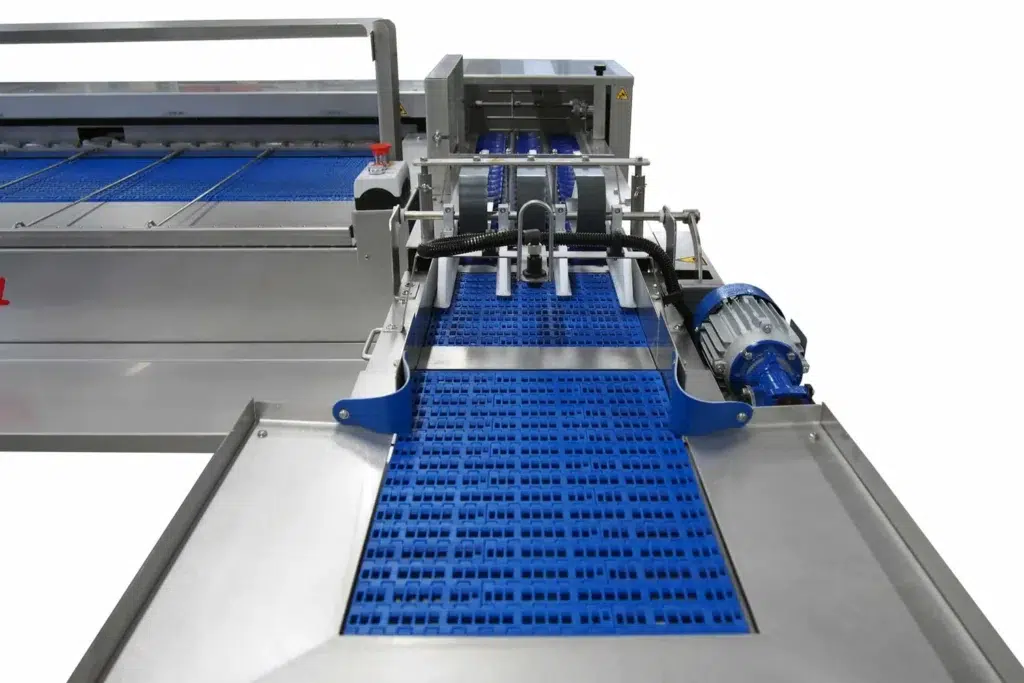

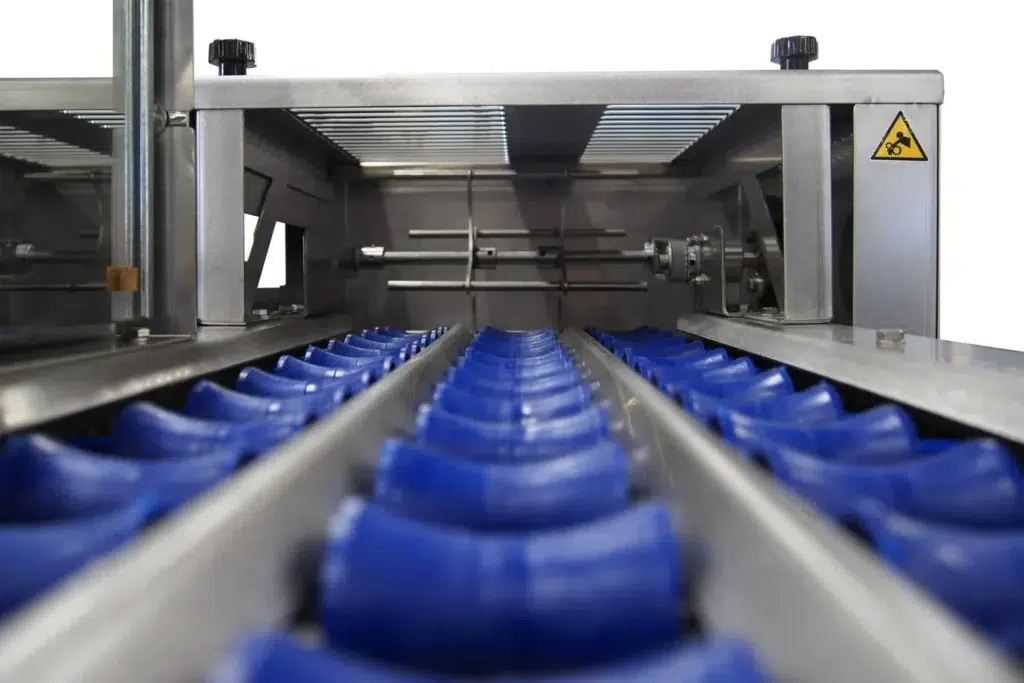

Belt Conveyor

An innovative solution which carries out the delicate operation of moving the eggs from the exit of the scales to the hand packing table.

Modulation

The engineering and the manufacture allows for easy maintenance besides offering the possibility of feeding the eggs either by hand or by in-line feeding conveyor. The limited dimensions of this egg grader permits it to fit into many situations according to individual needs.

Candling

All of our egg graders are fitted as standard with a fluorescent candling system.

ACCESSORIES

Also see our 'Egg Printers' &  'Egg Lifters' to support your overall egg grading solution...

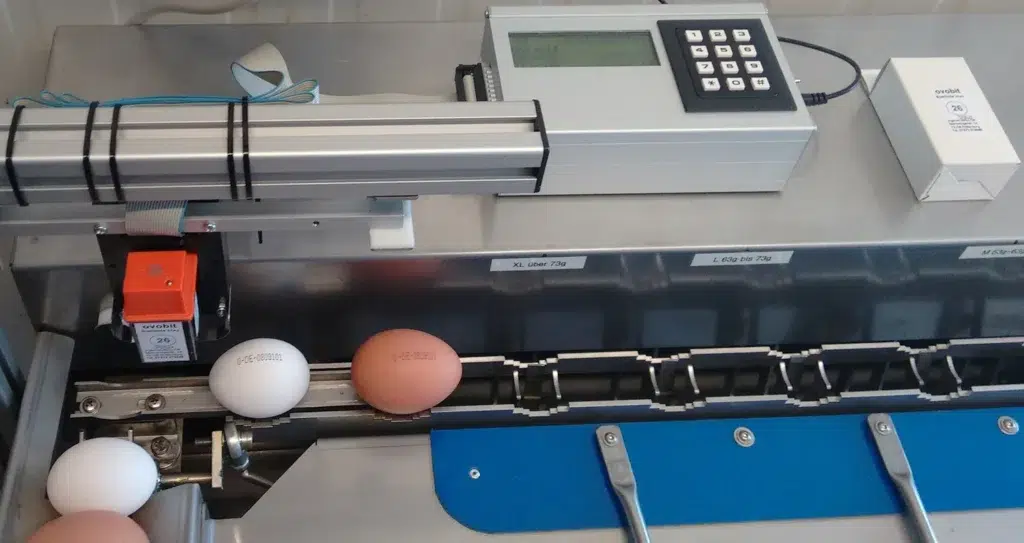

ovobit Egg printer

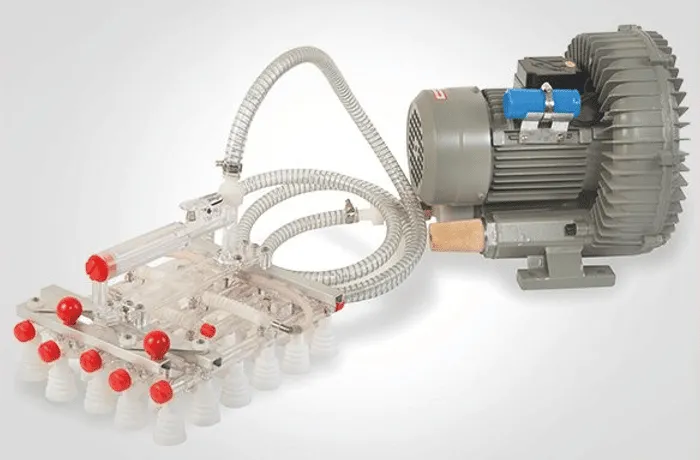

Vacuum Egg Lifters

Technical Specification

Speed 9,000 eggs / hour

Feeding Lanes 3

Loading Manual, or automatic thanks to the loading tray with removable edges

Candling With LED lamps under the feed roller

Weight categories 7 by means of 18 mechanical scales

Precision ± 1 gram

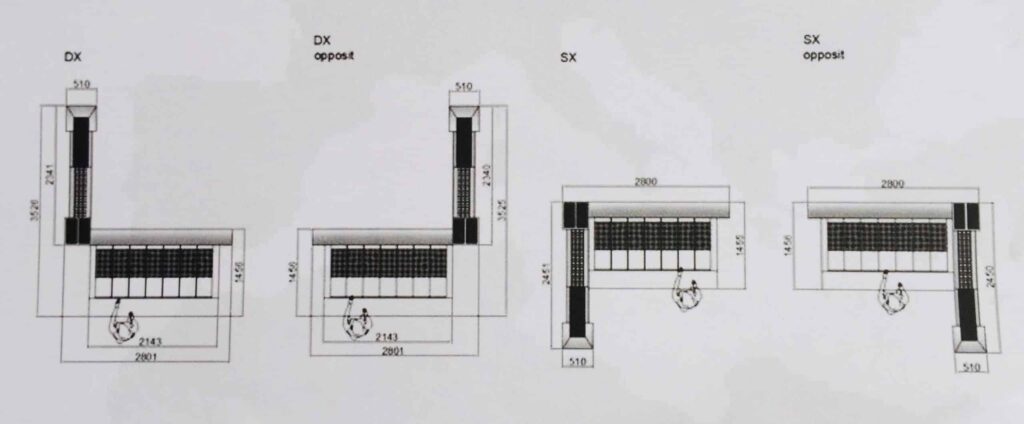

Dimensions mm (L x W x H) 3530 x 2800 x 960

Weight 380 kg

Power supply 3phase, 400V, 0.35A, 0.14Kw
