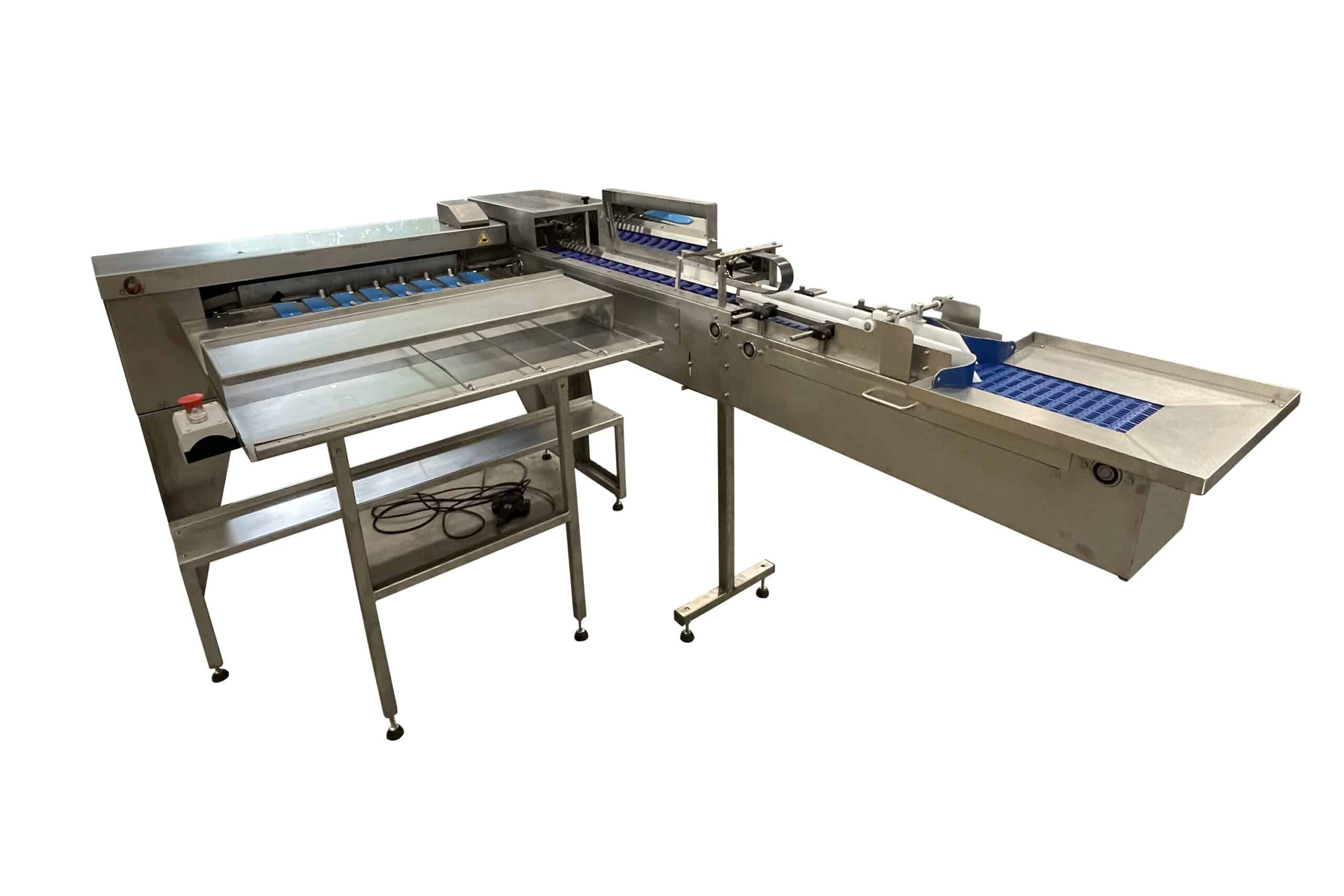

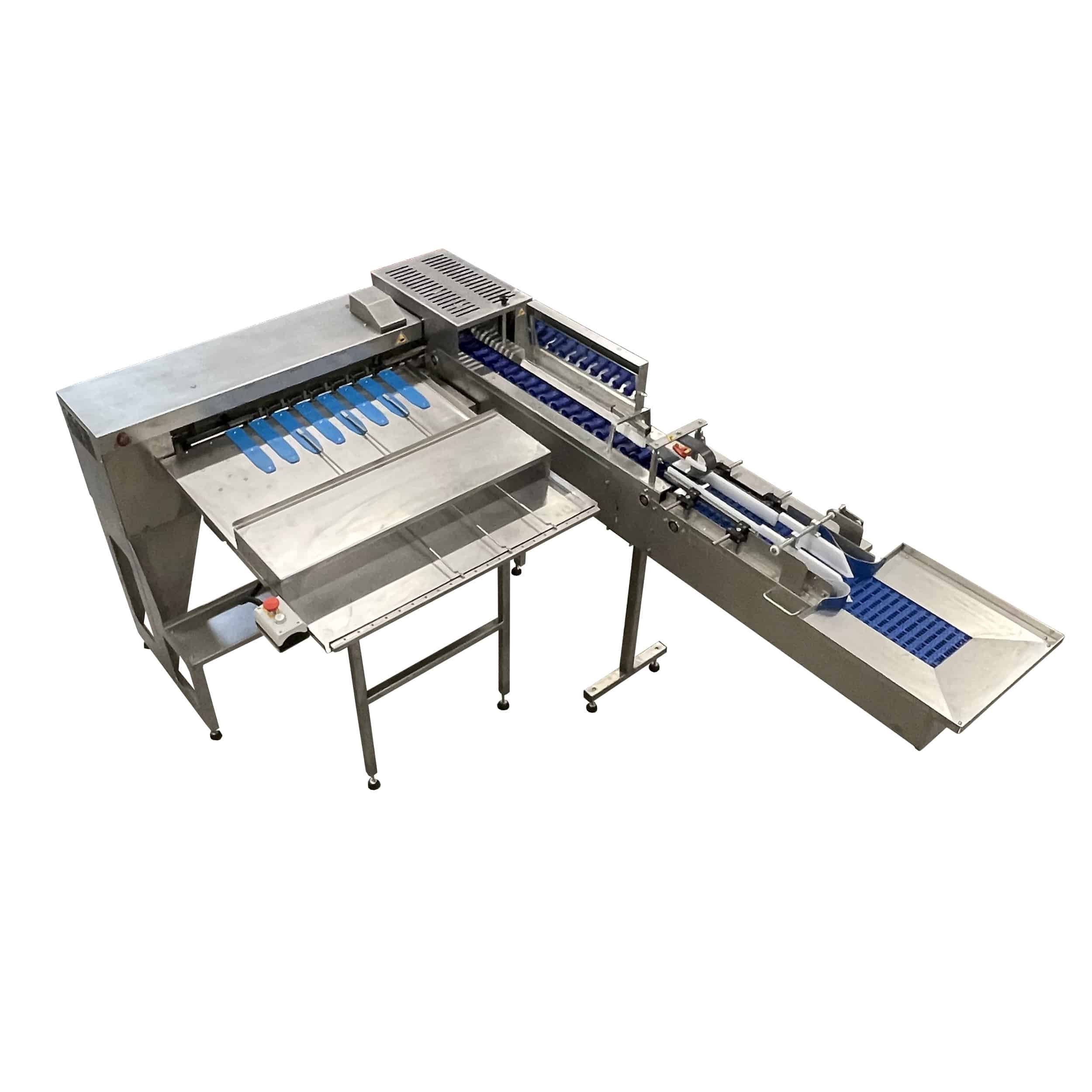

Riva Selegg Egg Grader Type S 31XL

This is Riva Selegg’s entry level semi automatic grading machine in stainless steel.

Perfect for the farmer who needs to grade and manage a workload of up to 3,000 eggs per hr.

An easy to operate machine that can be used by a single operator.

Can be supplied with a mechanical stamping system to code and logo print, or with a customisable electronic printer if a 'best before' etc. printing is required.

Features

  • Manual /Semi-Automatic egg loading

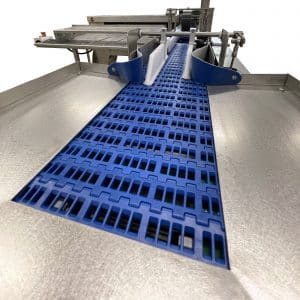

  • Modular conveyor belt
  • Candling lamp and mirror for quality control during loading.
  • Easy clean hygienic stainless collection table.
  • Select 7 weight categories using 6 precision scales .
  • Adjustable guides for the division of egg categories.
  • This model is available in 4 different configurations , both with standard infeed and with long infeed.

ACCESSORIES

Also see our 'Egg Printers' &  'Egg Lifters' to support your overall egg grading solution...

Egg printer
Vacuum Egg Lifters - v20a-2

 Technical specifications

Speed                     3,000 eggs / hour

Loading                  Manual /semi-Automatic with belt conveyor

Candling                 With LED lamp under the feeding roller

Weight categories   7 by means of 6 mechanical scales

Precision                 ± 1 gram

Dimensions mm (L x W x H)    Max. 3080 x 1360 x 960

Weight                     150kg (Approx.)

Power supply           Single phase, 230V, 1.15A

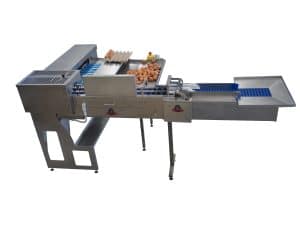

Type S 31XXL

Riva Selegg Egg Grader Type S 31XXL from Reid's Equipment

Made of stainless steel, Riva Selegg's semi-automatic grading machine.

3,600 eggs per hour.

Simple to set up, it can also be used by a single operator with low running costs.

Can be supplied with a mechanical stamping system for code and logo printing, or with an electronic printer that allows a high degree of customization, ie. adding 'best before' dates.

Features

  • Manual /Semi-Automatic loading of the eggs on a modular conveyor belt with candling lamp and mirror for quality control during loading.
  • Egg collection table in stainless steel , hygienic and easy to clean at the end of the job.
  • Select 7 weight categories using 6 precision scales.
  • Adjustable guides for the division of egg categories.
  • This model is available in 4 different configurations , both with standard infeed and with long infeed.

 Technical specifications

Speed                     3,600 eggs / hour

Loading                  Manual /semi-Automatic with belt conveyor

Candling                 With LED lamp under the feeding roller

Weight categories   7 by means of 6 mechanical scales

Precision                 ± 1 gram

Dimensions mm (L x W x H)    Max. 3200 x 1360 x 960

Weight                     180kg (Approx.)

Power supply           Single phase, 230V, 1.15A

ACCESSORIES

Also see our 'Egg Printers' &  'Egg Lifters' to support your overall egg grading solution...

Egg printer at Reids Equipment
Vacuum Egg Lifters
